₨ 130000
DEALS IN ORIGNAL & QUALITY PRODUCT Delivery & Payment Options during Order Confirmation
| Product by | Dawn Agro China (www.dawnagromach.com) |
| Product Name | 9Z-1.0 |
| Cutting | 15- 30 mm |
| Production Capacity | ≥1000kg/hr |
| Cutting Width | 250 mm |
| Power Source | Engine 7 Hp Or Motor 2-3Hp |
| Applicable | Grass/Hay/Silage/Fodder/Forage/Straw, Comstalk etc. |
| Weight N.W/G.W | 60kgs / 70kgs |
| Dimension | 1010*478*788mm |
| Paint | Powder Coated |
| Grass Type | Grass/Hay/Silage/Fodder/Forage/Straw |
| Cutting System | 4 Blades Cutting Reel and 1 Fix Blade |
| Smash | ≥1000kg/Hour |
| Dimensions | 1010*478*788mm |
| Deck Material | Steel |
| Drive | Double Gear |
| Cutting Height | 12 – 35 mm |
| Cutting Width | 10 inch |
| Weight if with Engine | 70 kg |
| Weight if with Motor | 80 kg |
| Cutting Speed | 2200cuts per min |
| Sound Power | 94 dB Lwa |
| Warranty | Check Warantee |
| Spare Parts Availability | Yes Mostly |
| Accessories | Inlet, Belts, Pulley Wheels Etc |
| Engine (Recommend) | SWAN GX210 |
| Engine Capacity | 7 HP |
| Engine Type | Air Cooled 4-Stroke OHV Single Cylinder |
| Power Output | 4.1KW /3600rpm |
| Made in | China |
| Start Method | Recoil |
| Fuel tank capacity | 3.1 Liters |
| Oil Capacity | 0.6 Liters |
| Fuel Consumption | 1.4 L/hr |
| Engine Foot | Horizontally Mounted |
| Engine Shaft | Vertically shaft. |
| Dry Weight | 15 Kg |
| Engine Warantee | No |
| Motor (Recommend) | China Double Capacitor |
| Motor Capacity | 3 HP |
| Wire Required | 7/ .44 |
| Length of Wire | 100 feet max |
| Motor Phase | Single Phase / Three Phase |
| Standard Voltage | 220/230 Volts & 380/450 Volts |
| Operating Voltages | 180/250 Volts & 400/440 Volts |
| Standard frequency | 50 Hertz or CPS & 50 Cycles/Sec |
| Rated Speed | 2800 R.P.M |
| Motor Foot | Horizontally Mounted |
| Motor Shaft | Vertically shaft. |
| Weight | 25 Kg |
| Motor Warantee | No |

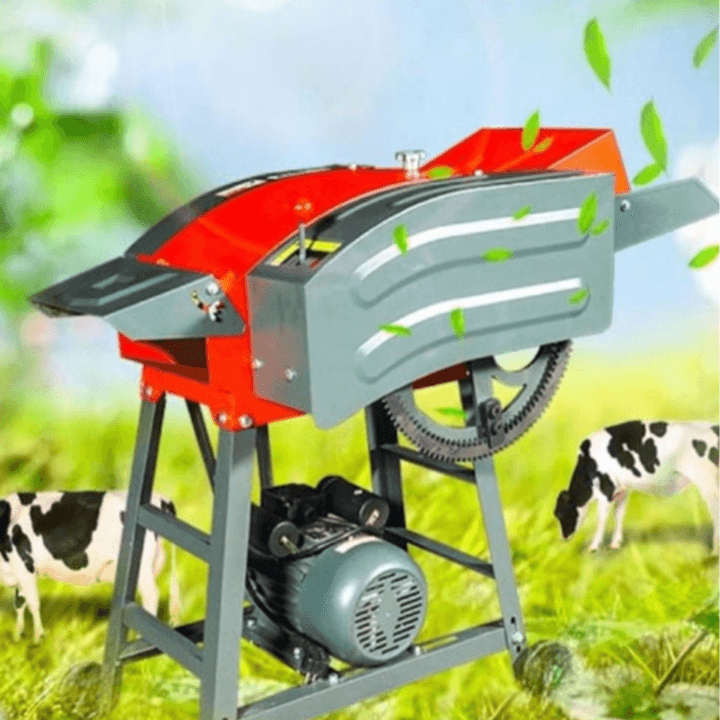

This chaff cutter machine applies to all kinds of forage grass grinder, crop straw, straw, fresh wet grass, and hay grass cutting and grinding work, also can be used for sweet potato, potato tuber, corn-soybean, wheat, and other grain, and sweet potato stalk crude fiber cutting and crushing feed processing machinery, apply to farmers, farms, small and medium-sized and large plant breeding, feeding the cattle, sheep, horses, deer, chickens, ducks, rabbits and other animals.
