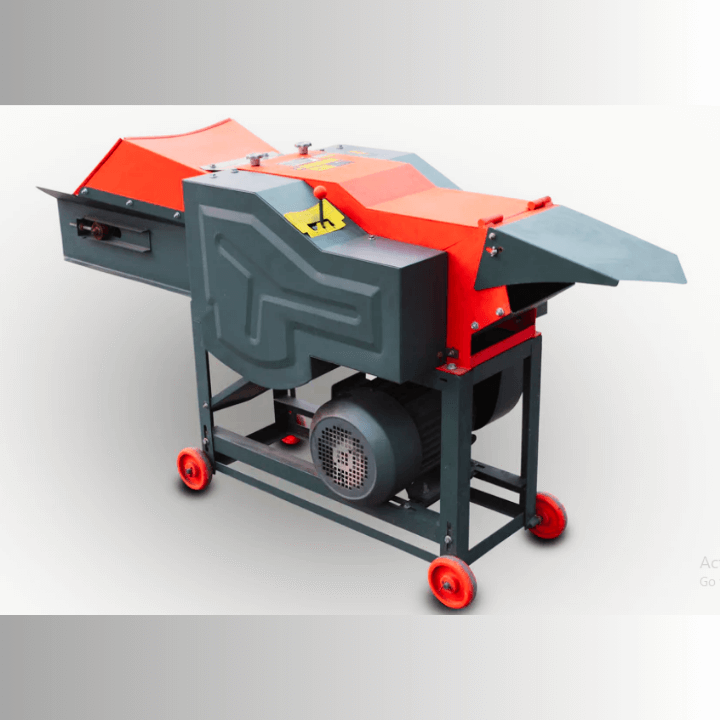

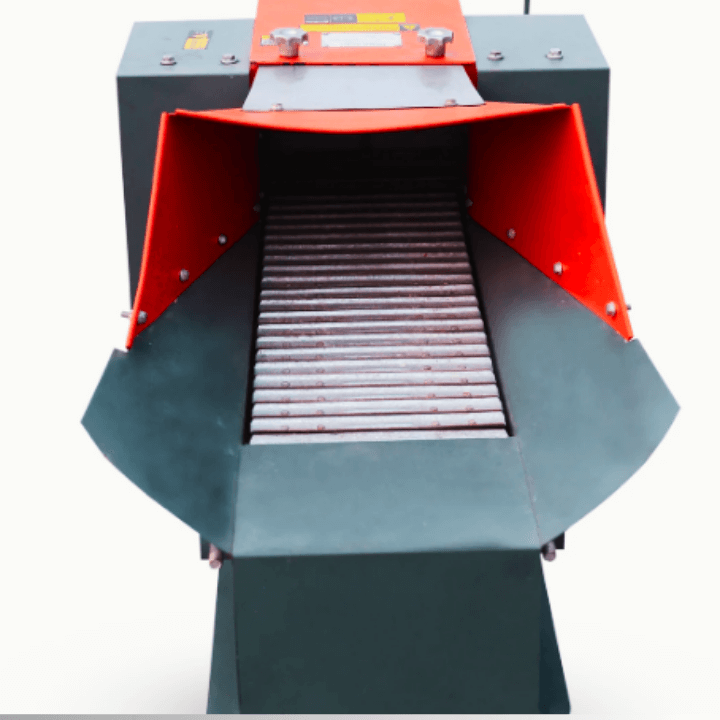

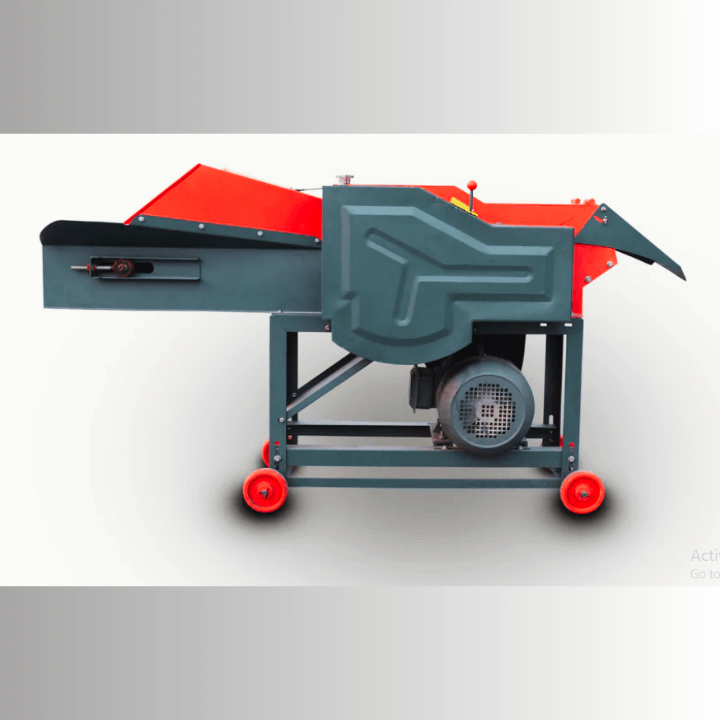

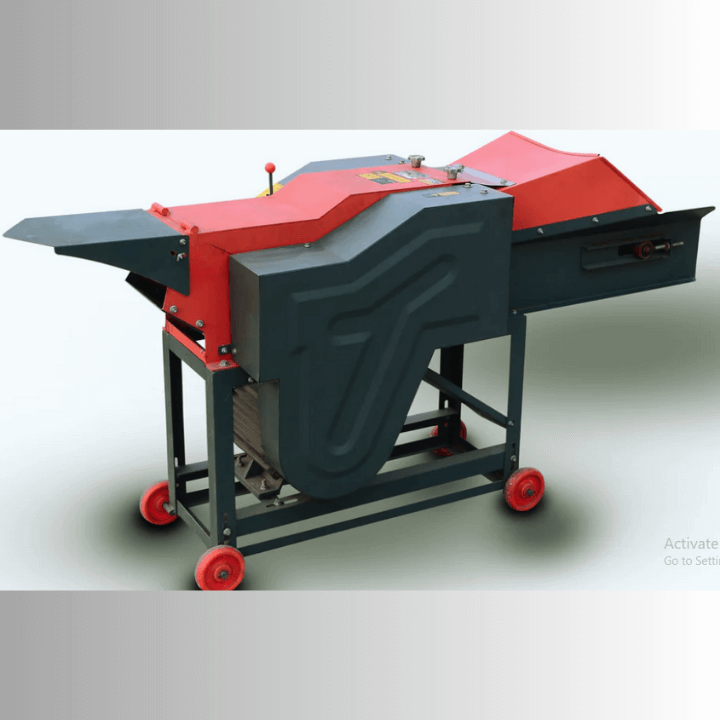

Chaff Cutter 9ZR-12 China (Toka Machine)

  • Easy Returns

    Receive products in amazing time

  • Always Authentic

    Return policy that lets you shop at ease

  • Secure Shopping

    We only sell 100% authentic products

₨ 375000

Add to wishlist

Highlights

FREE DELIVERY IN PAKISTAN

COD OPTION AVAILABLE,GUARANTEED ORIGINAL PRODUCT
Product by Dawn Agro China (www.dawnagromach.com)
Product Name 9ZR-12
Product Type Special Model with Conveyor Belt
Cutting 1.5- 3 cm
Production Capacity ≥2000-12000 kg/hr
Cutting Width 300 mm
Power Source Engine 15 Hp Or Motor 11Hp
Applicable Grass/Hay/Silage/Fodder/Forage/Straw, Comstalk etc.
Weight 125kgs
Dimension 1430*945*690mm With Hopper
Paint Powder Coated
Category:

Description

Grass Type Grass/Hay/Silage/Fodder/Forage/Straw
Cutting System 5/8 Blades Cutting Reel and 1 Fix Blade
Smash ≥200-12000 kg/Hour
Dimensions 1430*945*690 mm
Deck Material Steel
Inlet System High Quality Steel Conveyer Chain
Drive Double Gear
Protection MCB Breaker
Cutting Height 1.5 – 3 cm
Cutting Width 10 inch
Weight if with Engine 115 kg
Weight if with Motor 125 kg
Cutting Speed 2200cuts per min
Sound Power 114 dB Lwa
Warranty Check Warantee
Spare Parts Availability Yes Mostly
Accessories Inlet, Belts, Pulley Wheels Etc



Engine Information

Engine (Recommend) SWAN GX210
Engine Capacity 7 HP
Engine Type Air Cooled 4-Stroke OHV Single Cylinder
Power Output 4.1KW /3600rpm
Made in China
Start Method Recoil
Fuel tank capacity 3.1 Liters
Oil Capacity 0.6 Liters
Fuel Consumption 1.4 L/hr
Engine Foot Horizontally Mounted
Engine Shaft Vertically shaft.
Dry Weight 15 Kg
Engine Warantee No

Motor Information

Motor (Recommend) China Double Capacitor
Motor Capacity 3 HP
Wire Required 7/ .44
Length of Wire 100 feet max
Motor Phase Single Phase / Three Phase
Standard Voltage 220/230 Volts & 380/450 Volts
Operating Voltages 180/250 Volts & 400/440 Volts
Standard frequency 50 Hertz or CPS & 50 Cycles/Sec
Rated Speed 2800 R.P.M
Motor Foot Horizontally Mounted
Motor Shaft Vertically shaft.
Weight 25 Kg
Motor Warantee No

Benefits

This chaff cutter machine applies to all kinds of forage grass grinder, crop straw, straw, fresh wet grass, and hay grass cutting and grinding work, also can be used for sweet potato, potato tuber, corn-soybean, wheat, and other grain, and sweet potato stalk crude fiber cutting and crushing feed processing machinery, apply to farmers, farms, small and medium-sized and large plant breeding, feeding the cattle, sheep, horses, deer, chickens, ducks, rabbits and other animals.
