Gasoline Self Propelled Toro Greensmaster 1021

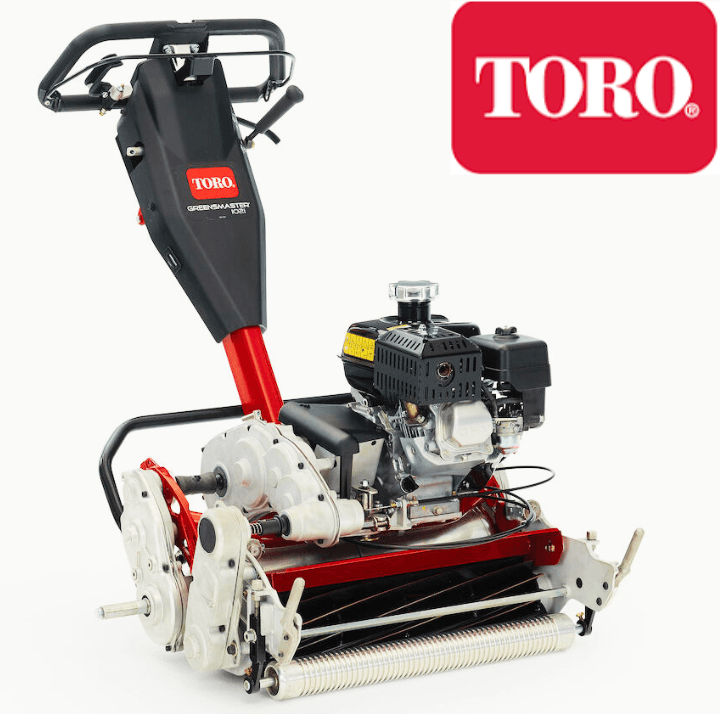

Gasoline Self Propelled Toro Greensmaster 1021

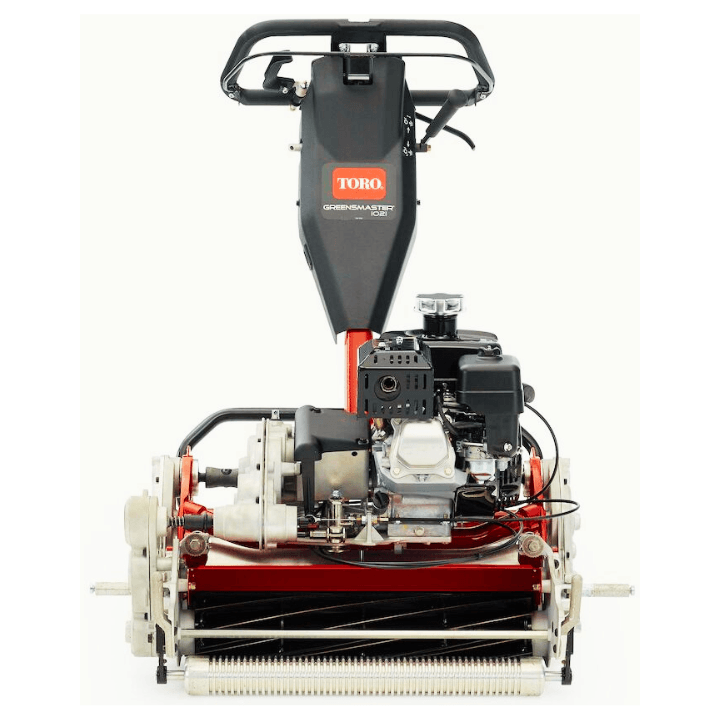

Gasoline Self Propelled Toro Greensmaster 1021 - Image 2

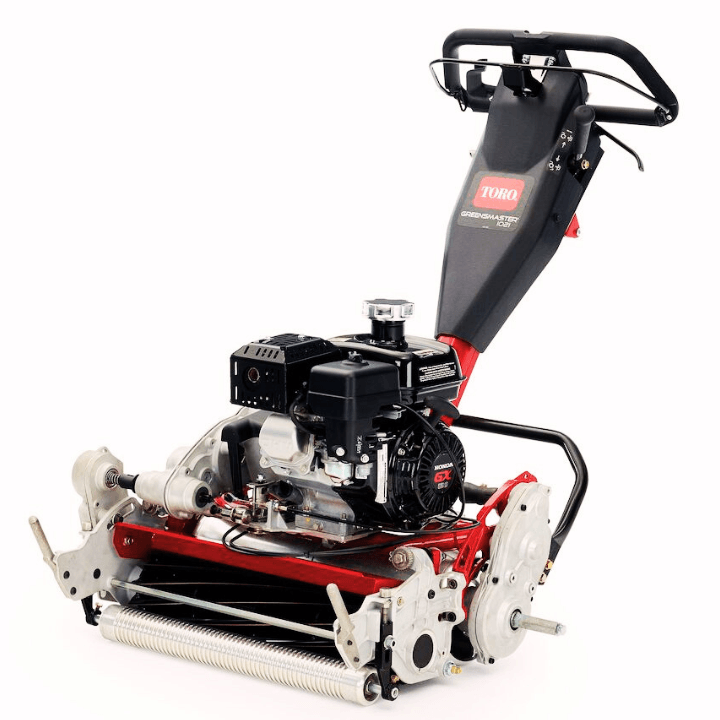

Gasoline Self Propelled Toro Greensmaster 1021 - Image 3

  • Return Or Exchange

    In 7Days Prior to use

  • Orignal and Quality Products

    Use Always 100% Authentic Products

  • After Sales Support

    We Provide Spare Parts and Services

₨ 6180000

Add to wishlist

Highlights

 DEALS IN ORIGNAL & QUALITY PRODUCT
Delivery & Payment Options during Order Confirmation



Product by TORO USA
Article Name & No. GREENSMASTER 1021, Model 04830 Fixed Head
Drive System Self propelled
Forward Speed While Mowing: 2.0-3.5 mph/ Forward up to 5.3 mph
Power Source Honda engine GX120, 3.5 hp (2.6 kW) @3600 rpm
Applicable Ideal for golf greens & tees
Cutting Cylinder 8, 11, or 14-blade Edge Series DPA
Cutting Height For Greens 0.062″ to 0.312″ (1.5 to 8 mm)
For Tees 0.25″ to 0.625″ (6 mm to 16 mm)
High Height of Cut Kit 1.18″ (30 mm)
Weight 224 lbs (100 kg) with 11-blade cutting unit
Category:

Description

Grass Type All Grasses
Cutting System Reel & Stationary Blade, EdgeSeries™ DPA radial reels
Cutting Width 21″ -53.3 cm
Lawn Size up to 400 Square meter
Traction Drive Full gear drive transmission with integral traction differential and traction drive disconnect to ease movement during service / maintenance operations. Interchangeable drum drive gear cases.
Traction Drum Dual position traction drum with positions for contour following or forward weight bias at higher heights of cut.
Main Frame/Chassis Fully modular design allows quick disassembly for service / maintenance of all major components
Clutch Externally-mounted two sided dry disc clutch actuated by dual motion bail.
Brake Service / parking – band type
Cutting Unit Drive Quick-change dual speed gear drive combined with positive drive belt for (4) possible reel speed/clip settings.
Cutting Unit Attachment Detachable cutting unit allows easy removal for service / maintenance or cutting unit exchange for different uses
Cutting Unit Opiton 8-blade, 11-blade,14-blade cutting unit
Controls Engine mounted Recoil starter, choke, fuel shutoff
Controls handle mounted on/off switch, throttle lever, dual motion traction / safety bail, reel engage lever, service/park brake lever, hour meter, whiteboard, light switch
Handle Loop handle with telescoping adjustment with 5″ (12.7 cm) total travel, rubber isolated to minimize operator influence during mowing.
Transport tires/ Kick Stand Optional – Two, quick-detachable pneumatic tires (3.00X3.25-6). Kickstand is standard.
Height of cut range For Greens (Drum Position One) 0.062″ to 0.312″ (1.5 to 8 mm)
For Tees (Drum Position Two 0.25″ to 0.625″ (6 mm to 16 mm)
High Height of Cut Kit (Drum Position Two 1.18″ (30 mm)
Reel/Cylinder Drive Mechanical/Belt
Grass Collector High-density polyethylene
Lighting Optional
Sound Power 84 dB Lwa
Optional Accessories Optional Accessories: LED lights, push broom, backlap kit, wheel kit, wireless hour meter, high cut bracket



Engine Information

Engine Specifications

• Engine Type: Air-cooled 4-stroke OHV, horizontal shaft
• Displacement: 163 cm³ (10.0 cu in)
• Bore x Stroke: 68 x 45 mm (2.7 x 1.8 in)
• Compression Ratio: 9.0:1
• Net Power: 3.6 kW (4.8 HP) at 3,600 rpm
• Max Net Torque: 10.3 Nm (7.6 lb-ft) at 2,500 rpm
• Ignition System: Transistorized magneto ignition
• Starting System: Recoil starter

Capacities & Dimensions

• Fuel Tank Capacity: 3.1 liters
• Fuel Consumption: 1.4 liters per hour at 3,600 rpm
• Engine Oil Capacity: 0.58 to 0.6 liters (recommended grade SAE 10W-30)
• Dry Weight: 15.1 kg (33.3 lbs)
• Dimensions (L x W x H): 312 x 362 x 346 mm

Benefits

Toro’s line of fixed-head walk-behind greensmowers have been engineered to bring each operator and greensmower into perfect harmony with one another. Multiple innovations – starting with an industry-first telescoping handle – come together to deliver unparalleled cut quality and consistent playability on each and every green. The modular design also makes the Greensmaster mowers easier than ever to maintain, saving significant time and money and lowering the total cost of ownership.
